教学质谱仪的设计、构造及其在实验教学中的应用
Design and Construction of a Teaching Mass Spectrometer and Its Application in Experimental Teaching
1-离子源底座；2-电离室的peek支架柱子；3-屏蔽罩支架柱子；4-灯丝底座；5-灯丝；6-电离室；7-屏蔽罩
教学质谱仪的设计、构造及其在实验教学中的应用 |
| 苏海峰, 邓顺柳, 李云凯, 吴迪, 林志敏, 黄晓圳, 梁曼玉, 卢文和, 邱源, 郑兰荪 |
|
Design and Construction of a Teaching Mass Spectrometer and Its Application in Experimental Teaching |
| Haifeng Su, Shunliu Deng, Yunkai Li, Di Wu, Zhimin Lin, Xiaozhen Huang, Manyu Liang, Wenhe Lu, Yuan Qiu, Lansun Zheng |

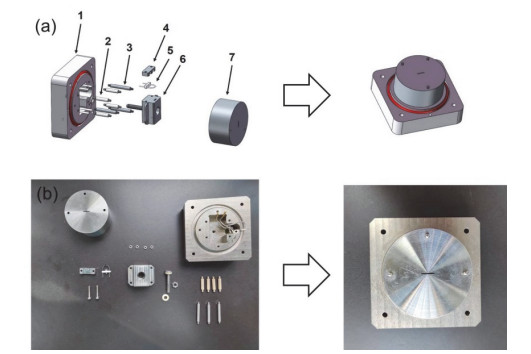

| 图8 EI离子源组装示意图(a)及组装实物图(b) 1-离子源底座；2-电离室的peek支架柱子；3-屏蔽罩支架柱子；4-灯丝底座；5-灯丝；6-电离室；7-屏蔽罩 |
|
|
