变压吸附实验装置的小型化、低成本化改进
Design of a Low-Cost Benchtop System for Pressure Swing Adsorption Experiments for Undergraduate Laboratory Teaching
1.空气压缩机；2.装有变色硅胶的干燥管；3.电磁切换阀；4.吸附柱；5.节流阀；6.三通；7.储气罐；8.节流阀；9.转子流量计；10.氧含量分析仪；11.电磁阀控制器；12.压力表
变压吸附实验装置的小型化、低成本化改进 |
| 李清骊, 行甜雨, 杨钰欣, 王卓鹏 |
|
Design of a Low-Cost Benchtop System for Pressure Swing Adsorption Experiments for Undergraduate Laboratory Teaching |
| Qingli Li, Tianyu Xing, Yuxin Yang, Zhuopeng Wang |

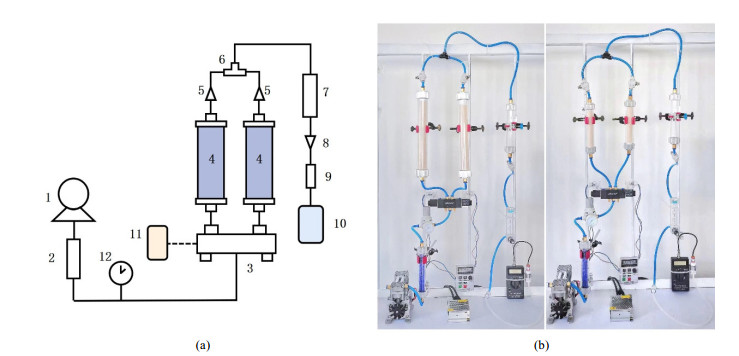

| 图2 (a) 分子筛变压吸附制氧装置示意图；(b) 搭建好的装置照片(左图使用大管，右图使用小管) 1.空气压缩机；2.装有变色硅胶的干燥管；3.电磁切换阀；4.吸附柱；5.节流阀；6.三通；7.储气罐；8.节流阀；9.转子流量计；10.氧含量分析仪；11.电磁阀控制器；12.压力表 |
|
|
