有机氟化物的电化学合成

doi:10.3866/PKU.DXHX202102001

Abstract

Abstract:

Organic fluorides have been widely applied in various spheres, especially in the medical field. However, due to the distinctive reactivity of fluorine, the introduction of fluorine atom has always been a problem in organic chemistry. As a novel synthetic method developed in recent years, organic electrochemical synthesis has greatly expanded the boundaries of organic reactions, which have enabled the development of many efficient and eco-friendly fluorination methods. In this paper, we will focus on these examples of electro-chemical fluorination, and discuss the possible role of electrochemical methods in the field of fluoro-chemistry.

Key words: Electro-organic chemistry, Fluorochemistry, Organic synthesis, Methodology

Zihang Zhang, Sizhe Li, Liyan Kan, Jun Wen, Jiang Bian. Electrosynthesis of Organic Fluorides[J].University Chemistry, 2021, 36(12): 2102001.

Figures/Tables 39

References 46

1	KirshP. 现代有机氟化学——合成、反应、应用. 第2版北京: 化学工业出版社, 2014, 7
2	(a) Moissan, H. C. R. Hebd. Seances Acad. Sci. 1886, 102, 1534.
	(b) Moissan, H. C. R. Hebd. Seances Acad. Sci. 1886, 103, 202.
	(c) Moissan, H. C. R. Hebd. Seances Acad. Sci. 1886, 103, 256.
	(d) For some representative reports on fluorine and fluoride compounds, see:
	(i) Moissan, H. Ann. Chim. Phys. 1887, 12, 472.
	(ii) Moissan, H. Ann. Chim. Phys. 1891, 24, 224.
	(iii) Moissan, H. Ann. Chim. Phys. 1894, 2, 66.
3	Borodine A. Ann. Chem. Pharm. 1863, 126, 58. doi: 10.1002/jlac.18631260105
4	Elliott, A. J. Chlorofluorocarbons. In Organofluorine Chemistry: Principles and Commercial Applications; Banks, R. E., Smart, B. E., Tatlow, J. C. Eds.; Plenum Press: New York, USA, 1994; pp. 145-157.
5	(a) Rhodes, R. The Making of the Atomic Bomb; Simon and Schuster: New York, USA, 1986.
	(b) Rhodes, R. Dark Sun: The Making of the Hydrogen Bomb; Simon and Schuster: New York, USA, 1995.
6	Simons J. H. J. Electrochem. Soc. 1949, 95, 47. doi: 10.1149/1.2776733
7	Pearlson W. H. J. Fluorine. Chem. 1986, 32, 29. doi: 10.1016/S0022-1139(00)80505-9
8	Fuchigami T. ; Inagi S. Acc. Chem. Res. 2020, 53, 322. doi: 10.1021/acs.accounts.9b00520
9	Dinoiu V. ; Fukuhara T. ; Hara S. ; Yoneda N. J. Fluor. Chem. 2000, 103, 75. doi: 10.1016/S0022-1139(99)00252-3
10	Berger M. ; Herszman J. D. ; Kurimoto Y. ; Kruijff G. H. M. ; Schuell A. ; Rufc S. ; Waldvogel S. R. Chem. Sci. 2020, 11, 6053. doi: 10.1039/D0SC02417A
11	Xiang J. ; Shang M. ; Kawamata Y. ; Lundberg H. ; Reisberg S. H. ; Chen M. ; Mykhailiuk P. ; Beutner G. ; Collins M. R. ; Davies A. ; et al Nature 2019, 573, 398. doi: 10.1038/s41586-019-1539-y
12	Fukuhara T. ; Akiyama Y. ; Yoneda N. ; Tada T. ; Hara S. Tetrahedron Lett. 2002, 43, 6583. doi: 10.1016/S0040-4039(02)01440-5
13	Tajima T. ; Nakajima A. ; Fuchigami T. J. Org. Chem. 2006, 71, 1436. doi: 10.1021/jo0520745
14	Hou Y. ; Higashiya S. ; Fuchigami T. J. Org. Chem. 1999, 64, 3346. doi: 10.1021/jo981979y
15	Fuchigami T. ; Inagi S. Chem. Commun. 2011, 47, 10211. doi: 10.1039/c1cc12414e
16	Baba D. ; Ishii H. ; Higashiya S. ; Fujisawa K. ; Fuchigami T. Tetrahedron 2001, 57, 9067. doi: 10.1016/S0040-4020(01)00910-3
17	Hasegaw M. ; Ishii H. ; Fuchigami T. Green Chem. 2003, 5, 512. doi: 10.1039/B304617F
18	Cao Y. ; Suzuki K. ; Tajima T. ; Fuchigami T. Tetrahedron 2005, 61, 6854. doi: 10.1016/j.tet.2005.04.057
19	Hasegawa M. ; Ishii H. ; Fuchigami T. Tetrahedron Lett. 2002, 43, 1503. doi: 10.1016/S0040-4039(02)00047-3
20	Suzuki J. ; Shida N. ; Inagi S. ; Fuchigami T. Electroanalysis 2016, 28, 2797. doi: 10.1002/elan.201600130
21	Fuchigami T. ; Tajima T. J. Fluor. Chem. 2005, 126, 181. doi: 10.1016/j.jfluchem.2004.11.003
22	Aoyama M. ; Fukuhara T. ; Hara S. J. Org. Chem. 2008, 73, 4186. doi: 10.1021/jo8004759
23	(a) Schulz, L.; Waldvogel, S. R. Synlett 2019, 30, 275.
	(b) Bin, Y.; Inagi, S.; Fuchigami, T. Beilstein J. Org. Chem. 2015, 11, 85.
	(c) Sawamura, T.; Kuribayashi, S.; Inagi, S.; Fuchigami, T. Adv. Synth. Catal. 2010, 352, 2757.
	(d) Inagi, S.; Sawamura, T.; Fuchigami, T. Electrochem. Commun. 2008, 10, 1158.
24	Monoi M. ; Hara S. J. Fluor. Chem. 2012, 140, 28. doi: 10.1016/j.jfluchem.2012.04.006
25	Tajima T. ; Nakajima A. ; Doi Y. ; Fuchigami T. Angew. Chem. Int. Ed. 2012, 51, 4413. doi: 10.1002/anie.201200438
26	Sawamura T. ; Takahashi K. ; Inagi S. ; Fuchigami T. Angew. Chem. Int. Ed. 2007, 46, 3550. doi: 10.1002/anie.200700037
27	(a) Takahashi, K.; Furusawa, T.; Sawamura, T.; Kuribayashi, S.; Inagi, S.; Fuchigami, T. Electrochim. Acta 2012, 77, 47.
	(b) Sawamura, T.; Kuribayashi, S.; Inagi, S.; Fuchigama, T. Adv. Synth. Catal. 2010, 352, 2757.
	(c) Sawamura, T.; Kuribayashi, S.; Inagi, S.; Fuchigami, T. Org. Lett. 2010, 12, 644.
	(d) Fuchigami, T.; Sano, M. J. Electroanal. Chem. 1996, 414, 81.
28	Francke R. ; Little R. D. Chem. Soc. Rev. 2014, 43, 2492. doi: 10.1039/c3cs60464k
29	Herszman J. D. ; Berger M. ; Waldvogel S. R. Org. Lett. 2019, 21, 7893. doi: 10.1021/acs.orglett.9b02884
30	Fujita T. ; Fuchigami T. Tetrahedron Lett. 1996, 37, 4725. doi: 10.1016/0040-4039(96)00951-3
31	(a) Haupt, J. D.; Berger, M.; Waldvogel, S. R. Org. Lett. 2019, 21, 242.
	(b) Herszman, J. D.; Berger, M.; Waldvogel, S. R. Org. Lett. 2019, 21, 7893.
32	Fuchigami T. ; Tetsu M. ; Tajima T. ; Ishii H. Synlett 2001, 8, 1269.
33	Fuchigami T. ; Mitomo K. ; Ishii H. ; Konno A. J. Electroanal. Chem. 2001, 507, 30. doi: 10.1016/S0022-0728(01)00440-5
34	(a) Fukuzumi, S.; Kotani, H.; Ohkubo, K.; Ogo, S.; Tkachenko, N. V.; Lemmetyinen, H. J. Am. Chem. Soc. 2004, 126, 1600.
	(b) Ohkubo, K.; Mizushima, K.; Iwata, R.; Souma, K.; Suzukib, N.; Fukuzumi, S. Chem. Commun. 2010, 46, 601.
35	(a) Barham, J. P.; Kçnig, B. Angew. Chem. Int. Ed. 2020, 59, 11732.
	(b) Huang, H.; Strater, Z. M.; Rauch, M.; Shee, J.; Sisto, T. J.; Nuckolls, C.; Lambert, T. H. Angew. Chem. Int. Ed. 2019, 58, 13318.
	(c) Yan, H.; Hou, Z.; Xu, H. Angew. Chem. Int. Ed. 2019, 58, 4592.
36	Qiu Y. ; Scheremetjew A. ; Finger L. H. ; Ackermann L. Chem. Eur. J. 2020, 26, 3241. doi: 10.1002/chem.201905774
37	Margrey A. K. ; Nicewicz D. A. Acc. Chem. Res. 2016, 49, 1997. doi: 10.1021/acs.accounts.6b00304
38	Dapperheld S. ; Steckhan E. ; Brinkhaus K. G. ; Esch T. Chem. Ber. 1991, 124, 2557. doi: 10.1002/cber.19911241127
39	DFT Calculation is done by Gaussian09, in B3LYP/6-31G(d) level for optimization and freqency analysis, and wB97X-D/def2-TZVP level for single point energy: Gaussian 09, Revision D. 01, Frisch, M. J.; Trucks, G. W.; Schlegel, H. B.; Scuseria, G. E.; Robb, M. A.; Cheeseman, J. R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G. A.; et al. Gaussian, Inc. : Wallingford CT, 2013.
40	Sources of E_OX data:
	(a) Schmidt, W.; Steckhan, E. Chem. Ber. 1980, 113, 577.
	(b) Steckhan, E. Organic Syntheses with Electrochemically Regenerable Redox Systems. In Electrochemistry I. Topics in Current Chemistry, Steckhan E. Eds.; Springer: Berlin, Heidelberg, Germany, 1987; p. 142.
41	Andreeva V. N. ; Grinberga V. A. ; Dedovb A. G. ; Loktevb A. S. ; Mayorovaa; N. A. ; Moiseevb I. I. ; Stepanova A. A. Russ. J. Electrochem. 2013, 49, 996. doi: 10.1134/S1023193513100030
42	Rodrigo S. ; Um C. ; Mixdorf J. C. ; GunasekeraD ; Nguyen H. M. ; Luo L. Org. Lett. 2020, 22, 6719. doi: 10.1021/acs.orglett.0c01906
43	Khrizanforov M. ; Gryaznova T. ; Sinyashin O. ; Budnikova Y. J. Organomet. Chem. 2012, 718, 101. doi: 10.1016/j.jorganchem.2012.06.032
44	Dudkina Y. B. ; Mikhaylov D. Y. ; Gryaznova T. V. ; Sinyashin O. G. ; Vicic D. A. ; Budnikova Y. H. Eur. J. Org. Chem. 2012, 11, 2114.
45	Dudkina Y. B. ; Khrizanforov M. N. ; Gryaznova T. V. ; Budnikova Y. H. J. Organomet. Chem. 2014, 751, 301. doi: 10.1016/j.jorganchem.2013.10.012
46	Takahira Y. ; Chen M. ; Kawamata Y. ; Mykhailiuka P. ; Nakamura H. ; Peters B. K. ; Reisberg S. H. ; Li C. ; Chen L. ; Hoshikawad T. ; et al Synlett 2019, 30, 1178. doi: 10.1055/s-0037-1611737

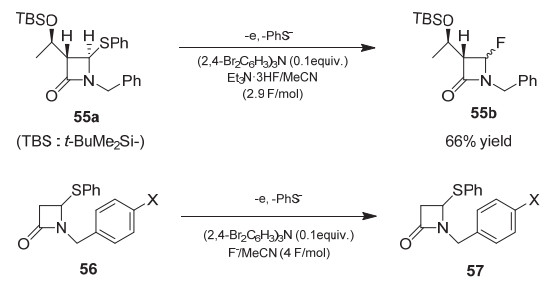

Run	β-lactam		Supporting Electrolyte	Product	Yield/%
Run	No.	X	Supporting Electrolyte	Product	Yield/%
1	55a	H	Et₄NF·3HF	56a	42
2	55a	H	Et₃N·3HF	56a	82
3	55b	CH₃	Et₃N·3HF	56b	71
4	55c	Br	Et₃N·3HF	56c	quant.


Run	Dithioacetal			Anode potential/V vs. SCE	Current consumption/electrons molecule^?1	Ar₃N ^a		Yield/% ^b
Run	No.	R	R’	Anode potential/V vs. SCE	Current consumption/electrons molecule^?1	Ar₃N ^a		Yield/% ^b
1	57a	Ph	Ph	1.3	4	58a	59a	58
2	57b	p-FC₆H₄	Ph	1.3	5	58a	59b	83
3	57c	p-FC₆H₄	p-FC₆H₄	1.3	5	58a	59c	58
4	57d	p-ClC₆H₄	p-ClC₆H₄	1.5	5	58b	59d	74
5	57f	n-C₅H₁₁	n-C₅H₁₁	1.5	2.5	58b	59f	trace
6	57e			1.3	5	58a	59e	61
7	57e			1.5	5	58b	59e	76

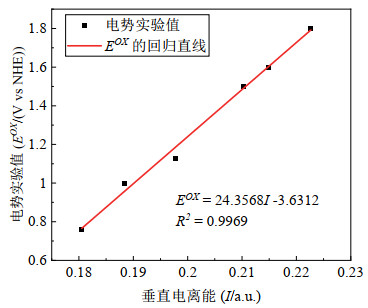

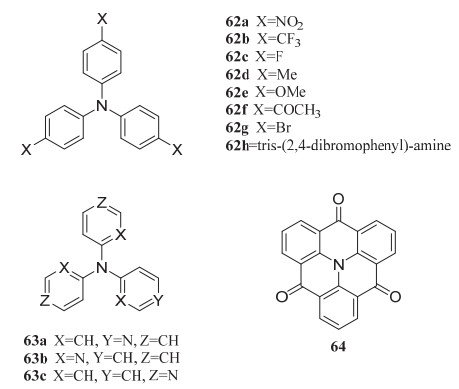

分子	垂直电离能/(a.u.)	E^OX vs. NHE (实验值)/V	E^OX (计算值)/V
62a	0.22265957	1.80	–
62b	0.21479178	1.60	–
62c	0.19766964	1.13 ^a	–
62d	0.18836738	1.00	–
62e	0.18053204	0.76	–
62f	0.21031914	1.50	–
63a	0.20344247	–	1.492326346
63b	0.20711209	–	1.594207464
63c	0.21327981	–	1.699719982
64	0.24011900	–	2.140778576
62g	–	1.3	–
62h	–	1.74	–

[1]	Fengxiao Wang, Zhiwei Miao, Yaofeng Yuan. Organophosphorus Chemistry and Its Integration in Teaching of Chemistry [J]. University Chemistry, 2025, 40(8): 158-168.
[2]	Shuhui Li, Rongxiuyuan Huang, Yingming Pan. Electrochemical Synthesis of 2,5-Diphenyl-1,3,4-Oxadiazole: A Recommended Comprehensive Organic Chemistry Experiment [J]. University Chemistry, 2025, 40(5): 357-365.
[3]	Yongjian Zhang, Fangling Gao, Hong Yan, Keyin Ye. Electrochemical Transformation of Organosulfur Compounds [J]. University Chemistry, 2025, 40(5): 311-317.
[4]	Yangwu Fu, Chuanbo Hu, Shuhong Chen. Teaching Reform and Practice of Physical Chemistry in Local Universities under the Background of Emerging Engineering Education [J]. University Chemistry, 2025, 40(3): 237-244.
[5]	Zhongming Song, Xingting Ma, Shuqing Li, Shengran A, Yuyang Zhang, Jing Tang, Yue Yao, Yueyuan Mao, Shengbiao Zheng, Wanwan Yao. Synthesis and Characterization of Iridium Complex: A Comprehensive Chemistry Experiment [J]. University Chemistry, 2025, 40(2): 278-288.
[6]	Chengzhuo Zhou, Zhaojun Xie. Exploring the Application of Artificial Intelligence Prediction Models in Organic Chemistry Laboratory Teaching: A Preliminary Study [J]. University Chemistry, 2025, 40(2): 320-331.
[7]	Yinuo Wang, Ziyu Liu, Hongxia Tan, Jun Tong, Dazhen Xu. Synthesis of Bromobenzoxazine: Introduce a Comprehensive Organic Chemistry Experiment Transformed from Undergraduate Research Innovation [J]. University Chemistry, 2025, 40(10): 208-216.
[8]	Fan Yang, Yanhong Bai, Pin Gao, Xinhua Duan, Yunchuan Xie. Exploration and Practice of Teaching Reform in Polymer Chemistry Experiment Course [J]. University Chemistry, 2025, 40(10): 63-71.
[9]	Ge Zhang, Min Ren, Yue Wang. Ideological and Political Education Design in Organic Synthesis Chemistry Course Based on Deep Learning: A Case Study of “Radical Reactions and Their Applications” [J]. University Chemistry, 2025, 40(1): 91-98.
[10]	Hong He, Xiadie Wu, Zhongwei Hou, Lei Wang. Recent Advances in the Electrochemical Aziridination of Alkenes [J]. University Chemistry, 2025, 40(1): 196-205.
[11]	Kexin Ma, Jiawei Fei, Yumei Lin. The History and Progress of Antiaromatic Compounds [J]. University Chemistry, 2025, 40(1): 219-226.
[12]	Aidang Lu, Yunting Liu, Yanjun Jiang. Comprehensive Organic Chemistry Experiment: Synthesis and Characterization of Triazolopyrimidine Compounds [J]. University Chemistry, 2024, 39(8): 241-246.
[13]	Yuan Zheng, Quan Lan, Zhenggen Zha, Lingling Li, Jun Jiang, Pingping Zhu. Teaching Reform of Organic Synthesis Experiments by Introducing Reverse Thinking and Design Concepts: Taking the Synthesis of Cinnamic Acid Based on Retrosynthetic Analysis as an Example [J]. University Chemistry, 2024, 39(6): 207-213.
[14]	Xinyu Zhu, Meili Pang. Application of Functional Group Addition Strategy in Organic Synthesis [J]. University Chemistry, 2024, 39(3): 218-230.
[15]	Shiyan Cheng, Yonghong Ruan, Lei Gong, Yumei Lin. Research Advances in Friedel-Crafts Alkylation Reaction [J]. University Chemistry, 2024, 39(10): 408-415.

Electrosynthesis of Organic Fluorides

RichHTML

PDF

Like

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 39

References 46

Related Articles 15

Metrics

Recommended 0

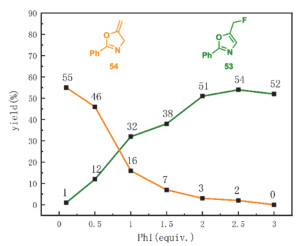

Entry	Iodoarene (R=)	Iodoarene (equiv.)	2a ^b/%	3a ^b/%
