微流量调节阀在液体饱和蒸气压测定实验中的应用

doi:10.3866/PKU.DXHX202107062

Abstract

Abstract:

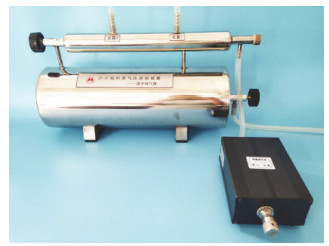

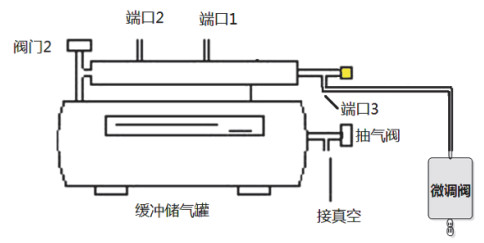

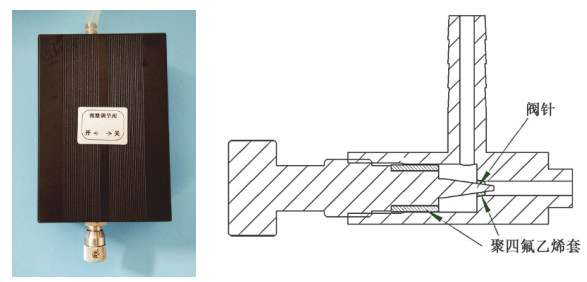

A micro-flow regulating valve was introduced into an experimental device used for liquid vapor pressure measurements, to enable the accurate and control of the pressure of the system and address the problem of backward air flow into the experimental system. Desirable results were obtained in the experimental process with the use of the micro-flow regulating valve in the experimental device.

Key words: Physical chemistry experiment, Micro-flow regulating valve, Molar heat of vaporization, Static method

Shuai Zhang, Jian Zhang, Shaowei Bian, Yaping Zhao, Li Shen, Chunying Xian. Application of a Micro-Flow Regulating Valve in Saturated Vapor Pressure Measurements[J].University Chemistry, 2022, 37(6): 2107062.

Figures/Tables 8

References 10

1	复旦大学, 等编. 庄继华, 等修订. 物理化学实验. 第3版. 北京: 高等教育出版社, 2004: 28-31.
2	邱金恒; 孙尔康; 吴强. 物理化学实验, 北京: 高等教育出版社, 2010, 25- 28.
3	北京大学化学学院物理化学实验教学组, 编. 物理化学实验. 第4版. 北京: 北京大学出版社, 2002: 44-46.
4	吉林大学; 朱万春; 张国艳; 李克昌; 徐家宁. 基础化学实验, 第2版北京: 高等教育出版社, 2017,物理化学实验分册 147- 150.
5	陈云华; 龚楚清; 张海波; 邓立志; 夏春兰. 大学化学, 2018, 33 (12), 51.
6	龚楚清; 邓媛; 邓立志; 夏春兰. 大学化学, 2016, 31 (3), 49.
7	董湧法, 陈平, 刘辉, 张玉春. 一种高真空针阀: 中国, CN201220575339.0[P]. 2013-07-03.
8	张利平. 一种超高真空手动阀: 中国, CN201921310224.7[P]. 2020-05-22.
9	傅献彩; 沈文霞; 姚天扬; 侯文华. 物理化学, 第5版北京: 高等教育出版社, 2005, 277- 279.
10	蒋风雷; 蔡雨萌; 邓立志; 邓媛; 龚楚清; 刘义. 大学化学, 2015, 30 (4), 47.

实验完成情况	实验装置改进前	实验装置改进后

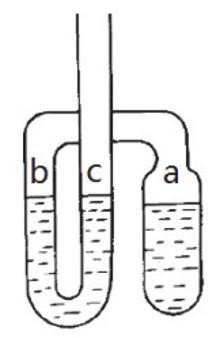

调节b、c管液面平衡一次成功率	< 25%	> 90%
发生空气倒灌比例	> 60%	< 5%
整体完成实验时间	3–4 h	2–3 h
乙醇平均摩尔汽化热值误差在±5%内比例	~10%	~70%
乙醇平均摩尔汽化热值误差在±10%内比例	~20%	~90%

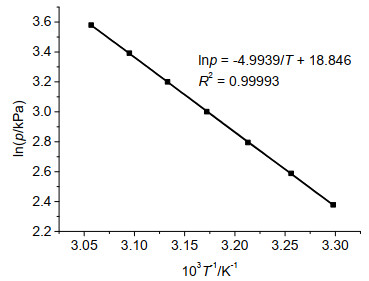

编号	沸点t/℃	沸点T/K	10³T^?1/K^?1	压力差Δp/kPa	蒸气压p =大气压+ Δp/kPa	ln(p/kPa)
1	30.04	303.04	3.298	?90.76	10.78	2.378
2	34.11	307.11	3.256	?88.24	13.30	2.588
3	38.07	311.07	3.213	?85.17	16.37	2.795
4	42.08	315.08	3.172	?81.44	20.10	3.001
5	46.01	319.01	3.133	?77.00	24.54	3.200
6	50.00	323.00	3.095	?71.82	29.72	3.392
7	53.97	326.97	3.057	?65.65	35.89	3.580
